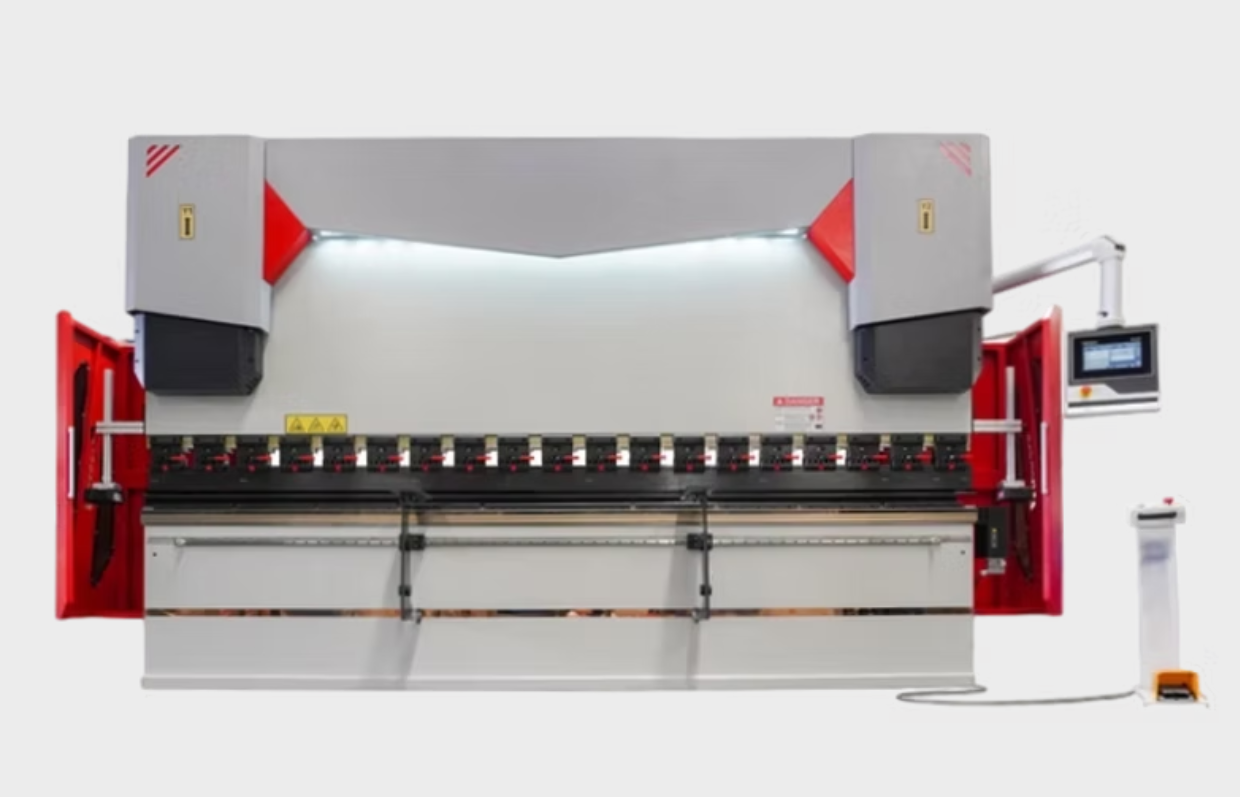

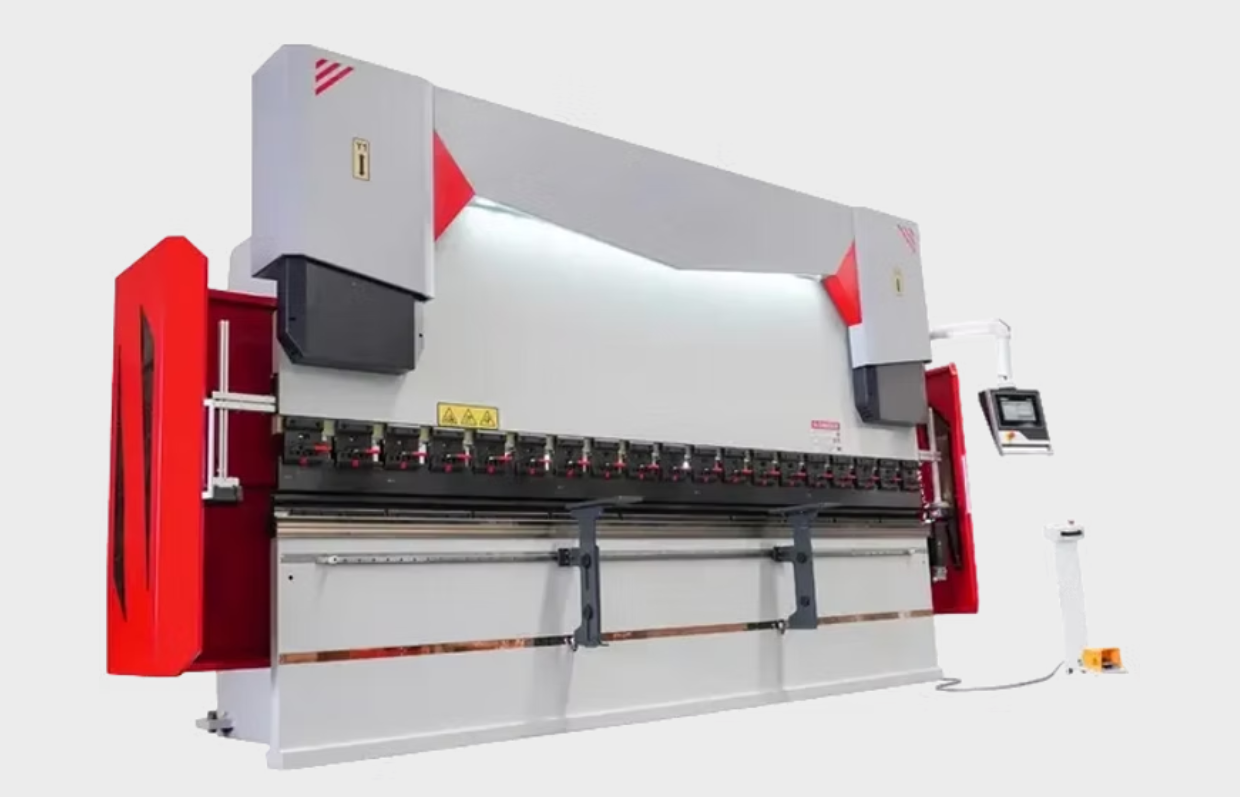

130/3200 SYNCH SHEET METAL BENDING MACHINE
01
FOLDING
The CNC control automatically calculates the bending angle, guaranteeing speed of use with the least number of steps and precision of execution
02

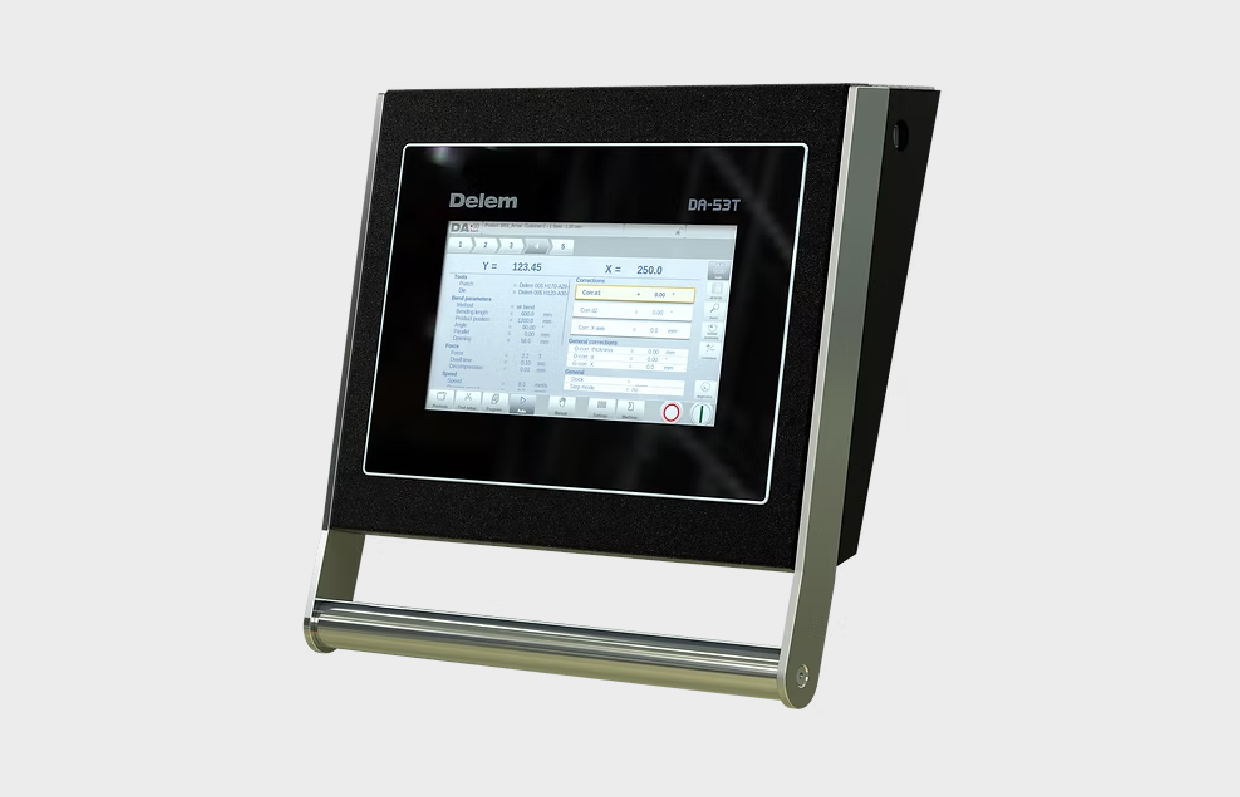

CNC CONTROL
High brightness color LCD
– Large 10.1 TFT screen
– LED back lighting
– Resolution 1024×600 pixels
– Industrial touch screen
– 1GB memory capacity
– Data backup via USB
– Integrated valve amplifier
– Power off memory
– Profile-53TL offline software
03

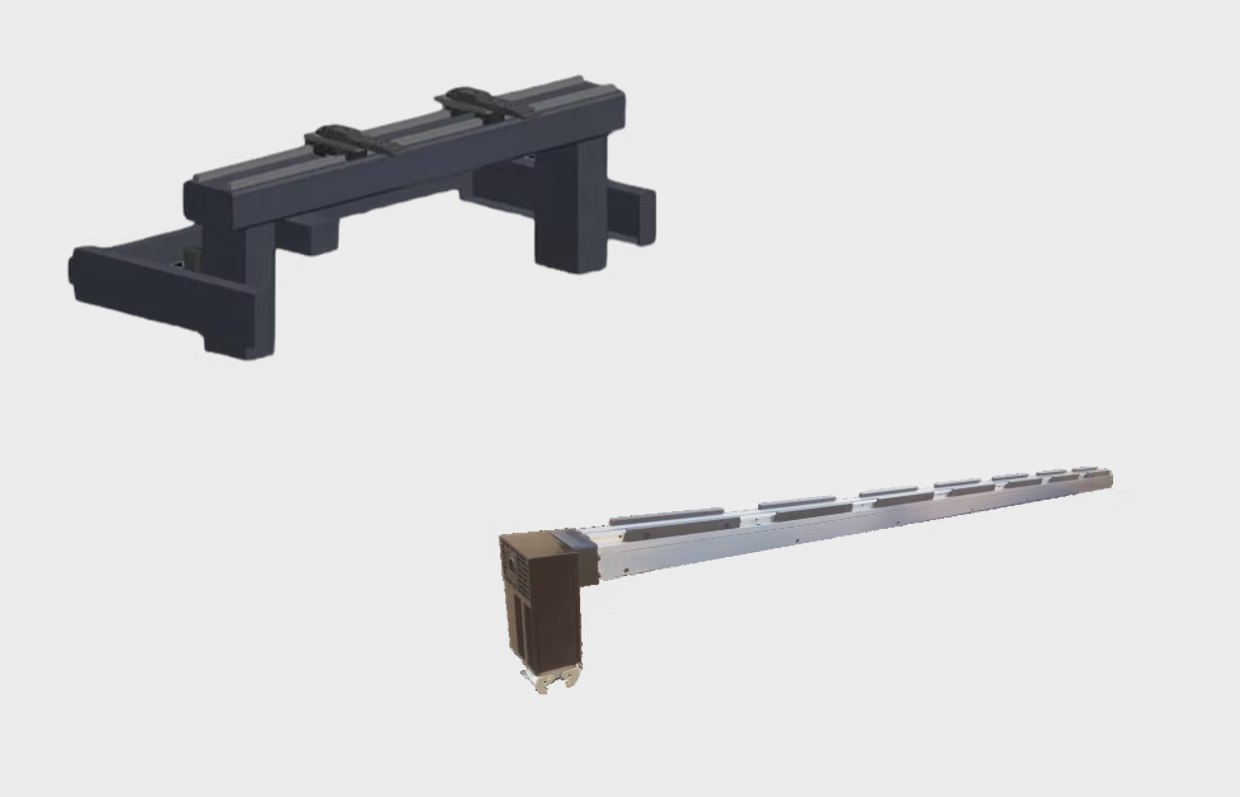

CENTINATURATION ASSE 5
The machine is equipped with a crowning system for compensation of the natural flexion of the board during the folding operation. The crowning takes place via an electro-curing table. Mechanics managed automatically by numerical control as V axis.
| Parameter |
Value
|
|---|---|
|
Workforce
|
130 Tones
|
|
Folding length
|
3200 mm
|
|
Distance between uprights
|
2700 mm
|
|
Total opening
|
440 mm
|
|
Side recess
|
400 mm
|
|
Tree stroke
|
180 mm
|
|
Rear register stroke
|
600 mm
|
|
Register speed
|
250 mm/s
|
|
Precision
|
0.02mm
|
|
Worktop height
|
820 mm
|
|
Main engine power
|
7.5KW
|
|
Oil capacity
|
380 L
|
|
Approach speed
|
110 mm/s
|
|
Working speed
|
10 mm/s
|
|
Return speed
|
90 mm/s
|
|
Machine weight
|
9,000 kg
|
|
Overall dimensions of the machinery L mm
|
4,250 x l 1,800 x h 2,580 mm
|
